HOME > METAL CUTTING MACHINE TOOLS > GRINDING MACHINE > 10-Centerless Grinder
PRODUCTS PROFILE

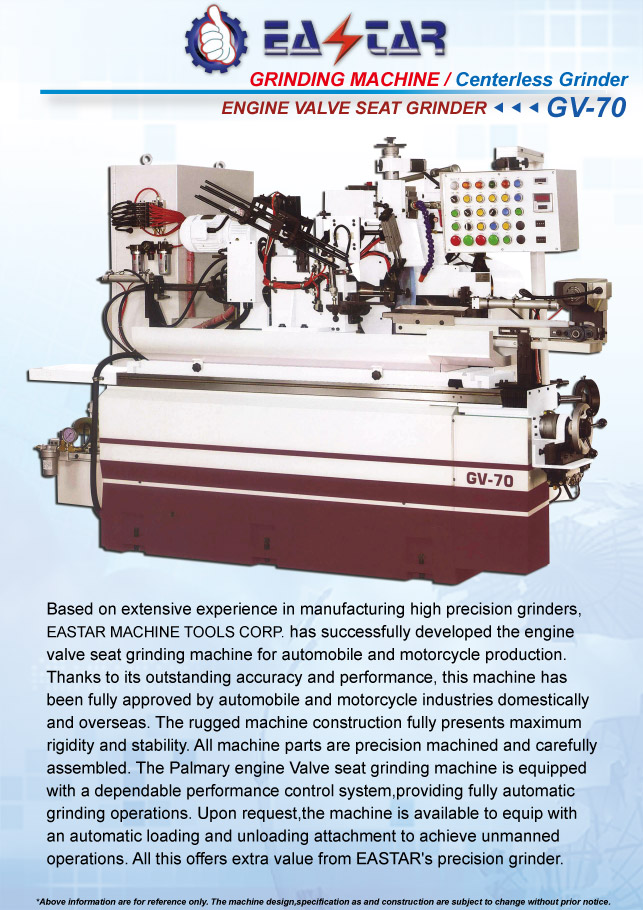

GV-70
ENGINE VALVE SEAT GRINDER

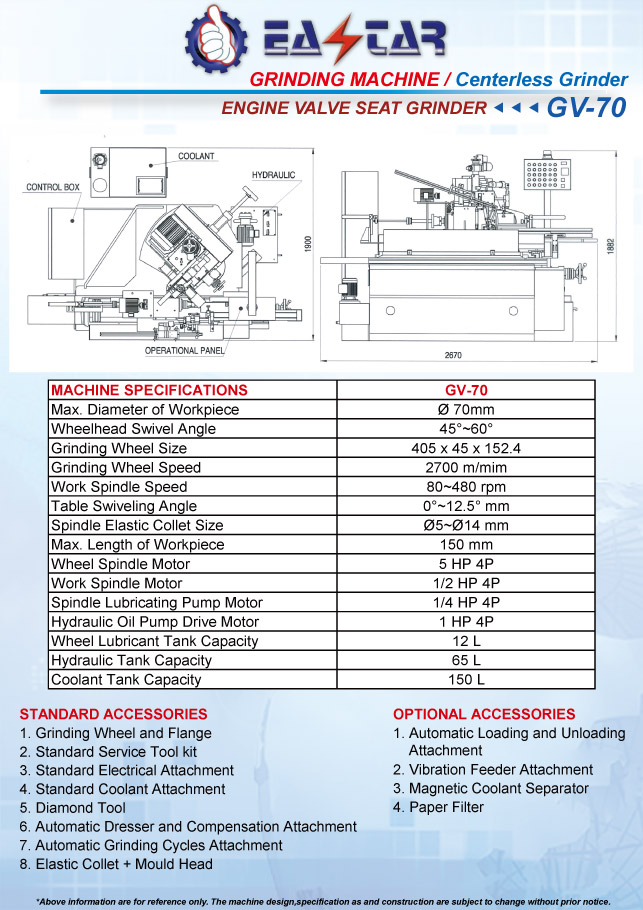

Max. Diameter:Ø 70
Wheelhead Swivel Angle:
45°~60°
PRODUCTS DETAIL
