HOME > METAL CUTTING MACHINE TOOLS > TURNING LATHE > 13-Twin Spindle CNC Lathe
PRODUCTS PROFILE

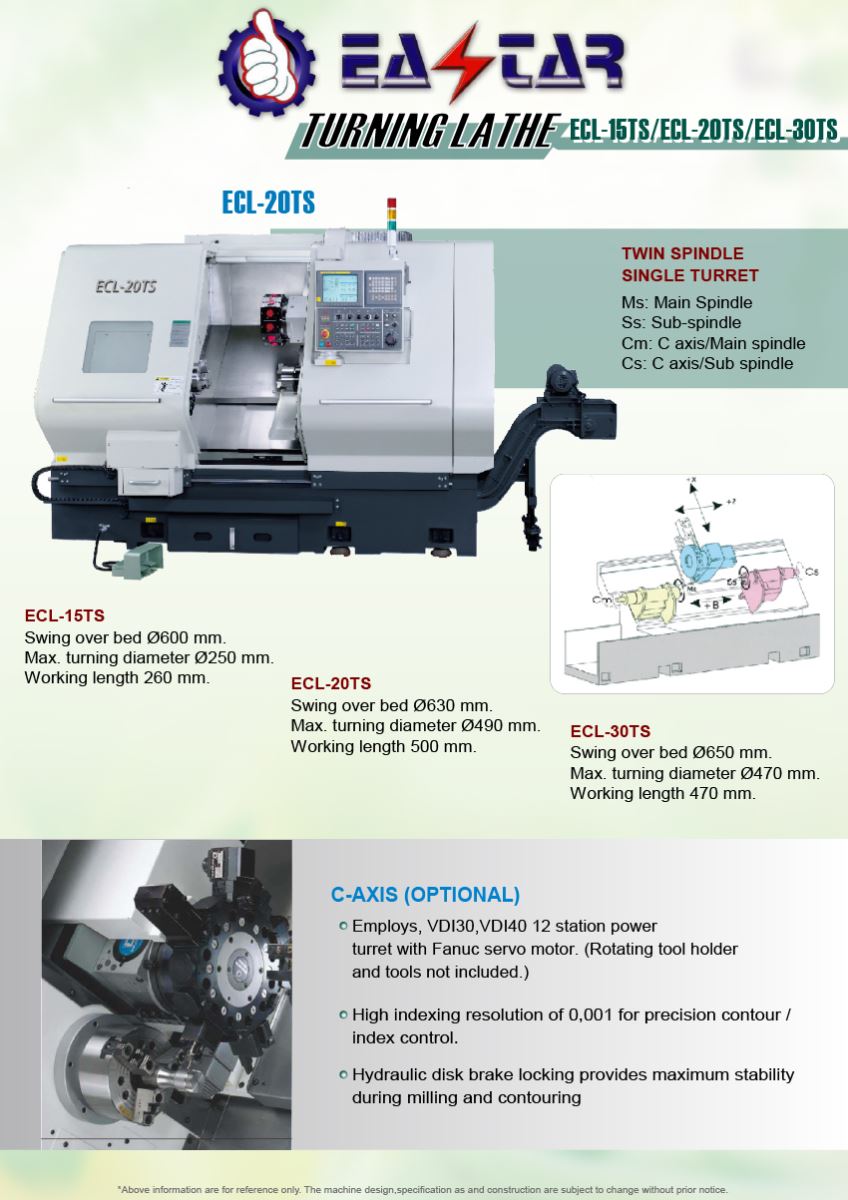

ECL-15TS,ECL-20TS,ECL-30TS
Swing Over Bed:Ø 600/650 mm
Spindle Bore:Ø56~Ø90 mm
PRODUCTS DETAIL
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
