HOME > METAL CUTTING MACHINE TOOLS > MACHINING CENTER > 5-Tapping center
PRODUCTS PROFILE

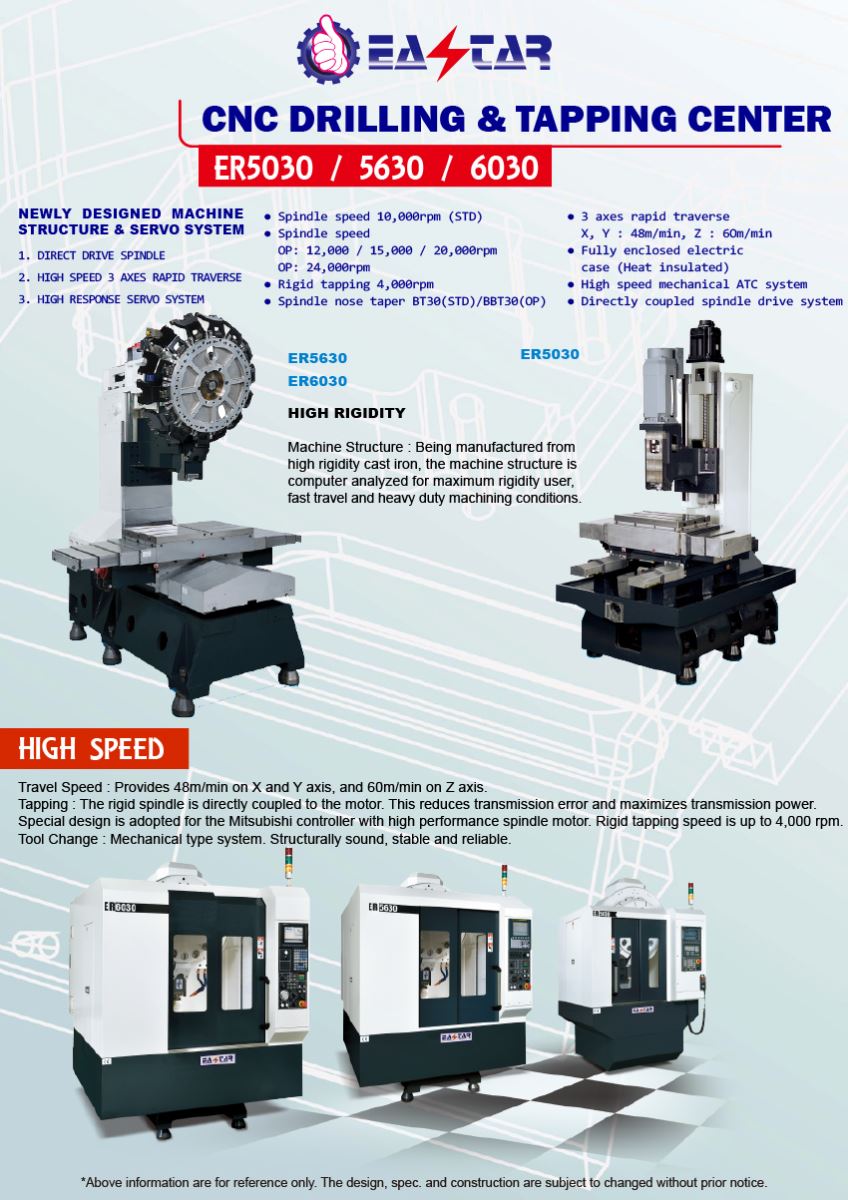

ER5030~ER6030
Drilling and Tapping Center

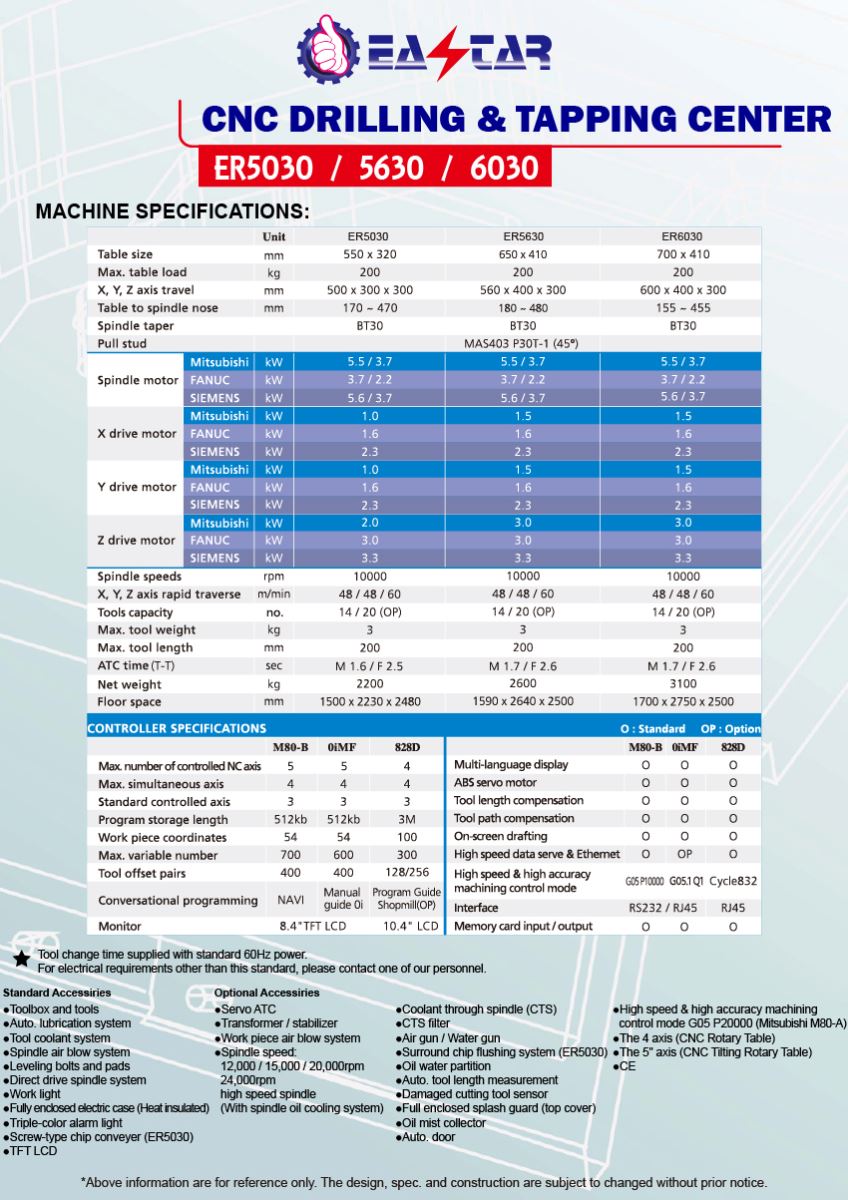

Table size: 500x320~700x410
X,Y,Z Axis travel: 500x300x300~600x400x300
PRODUCTS DETAIL
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
