HOME > METAL CUTTING MACHINE TOOLS > MACHINING CENTER > 1-Vertical Machining Center
PRODUCTS PROFILE

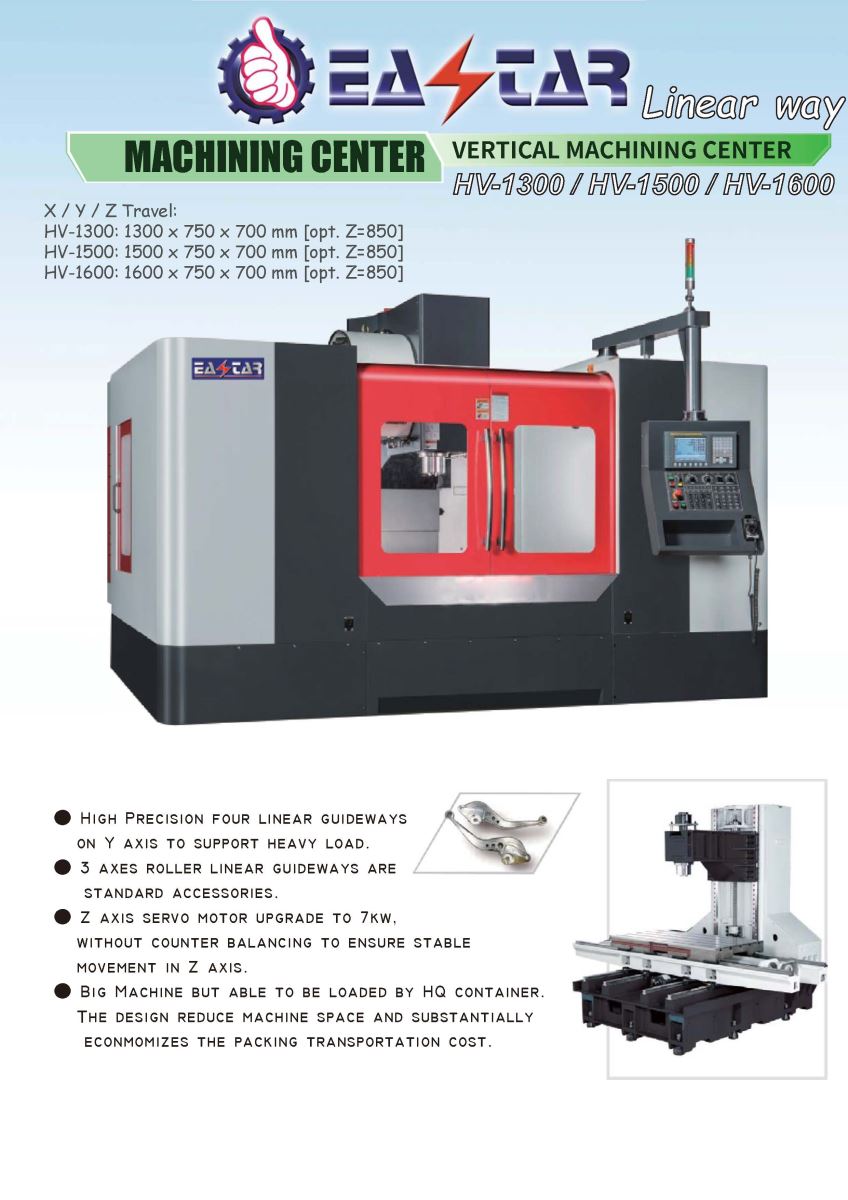

HV-1300/HV-1500/HV-1600
Liner Guideway Series
table area:1300x750~1650x550
X/Y/Z axis travel:1300/750/700~1600/750/700
PRODUCTS DETAIL
.jpg)
.jpg)
.jpg)
